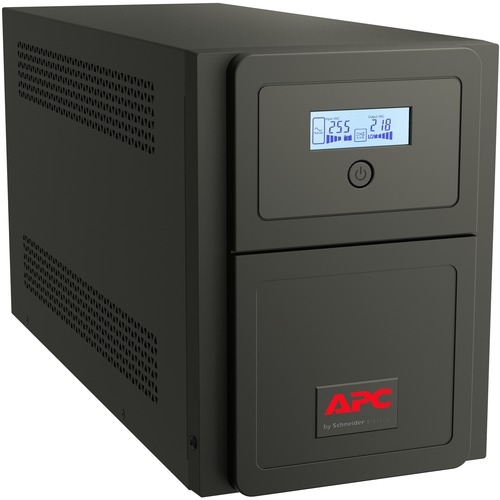

    main product photo

    Apc - Schneider EASY UPS SMV 750VA 230V WITHBATTERY BACKUP + SURGE PROTECTIO SMV750CAI

    $325.00
    SKU:370807
    MPN:SMV750CAI Link
    Manufacturer:https://www.apc.com
    Brand: Apc - Schneider
    Warranty:Standard Manufacturer's Warranty
    Availability:

    In stock

    Fright Estimate
    Add to Compare

    SMV750CAI Features

    Key Features


    Run time for load
    Min-max: 53-525 W
    W

    6m 50s
    Max. Capacity Used



    100%
    Output power capacity
    525 Watts / 750VA
    Output Connections
    (6) IEC 320 C13 (Battery Backup)
    (6) IEC 60320 C13 (Battery Backup)
    Nominal Output Voltage
    230V
    Nominal Input Voltage
    230V
    Input Connections
    IEC 60320 C14
    APC Easy UPS SMV 750VA 230V
    Easy UPS provides power protection for unstable power conditions, ensuring consistent and reliable connectivity at the most critical moments.
    Includes: Documentation CD, USB cable, User manual

    • Automatic Voltage Regulation (AVR)
      Automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment.
    • Cold-start capable
      Provides temporary battery power when the utility power is out.
    • Intelligent SmartSlot
      Mini slot supports various optional management cards which provide basic or essential monitoring, management and control features for the UPS.
    • LCD graphics display
      Text and mimic diagrams that display modes of operation, system parameters and alarms.
    • Pure sine wave output on battery
      Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.

    Easy UPS Features & Benefits

    Protection

    Battery and surge protected outlets
    Back up and protect your hardware and data during power outages, surges and spikes .
    Battery backup and surge protection
    Outlets provide abundant runtime for network gateway equipment and other critical low-power devices, allowing for hours of internet access during a power outage.

    Safety

    Safety-agency approved
    Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

    Availability

    Intelligent battery management
    Maximizes battery performance, life, and reliability through intelligent, precision charging.
    Battery failure notification
    Provides early-warning fault analysis on batteries enabling timely preventive maintenance
    Advanced Safety Features
    Safeguard your Home UPS from overloads, excessive mains voltages, short circuits, installation mishaps and battery damage due to low voltage situations.

    Features

    Transformer-block spaced outlets
    Protect equipment with input transformer blocks without blocking access to other receptacles.
    Sleek design
    Slim, modern design can be upright, flat, or wall-mounted to comfortably fit any electronics set-up and complement home décor.
    Cold-start capable
    Provides temporary battery power when the utility power is out.
    Boost Automatic Voltage Regulation (AVR)
    Preserves battery life and maximizes runtime by correcting low voltages without discharging the battery.

    Manageability

    LED Indicators
    Provide easy-to-read status of the unit and utility power conditions.
    Audible alarms
    Provides notification of changing utility power and UPS power conditions
    Controls/Indicators
    Status Indicators

    LCD Graphics Display:

        • Modes of operation
        • System parameters
        • Alarms

    LED Indicators:

      • Unit power conditions
      • Utility power conditions
    Interfaces/Ports
    Serial Port Yes
    USB (HID Compliant) Port Yes
    Management
    Alarm Low Battery
    On Battery
    Overload
    Physical Characteristics
    Weight (Approximate) 13.60 kg
    Form Factor Tower
    Height 220 mm
    Width 160 mm
    Depth 410 mm
    Battery Information
    Battery Chemistry Lead Acid
    Battery Size 12V
    Battery Capacity 7000 mAh
    Number of Batteries 2
    Battery Characteristics Maintenance-free, Sealed, Leak-proof
    Typical Battery Recharge Time 4 Hour
    Environmental Conditions
    Sound Emission 45 dB(A)
    Maximum Operating Temperature 40°C
    Maximum Operating Elevation 3 km
    Maximum Storage Elevation 3 km
    Operating Humidity 0% - 95%
    Storage Relative Humidity 0% - 95%
    Storage Temperature -10°C - 40°C
    General Information
    Product Type Line-interactive UPS
    Manufacturer Part Number SMV750CAI
    Manufacturer Website Address http://www.schneider-electric.com.au
    Manufacturer Schneider Electric SA
    Product Name Easy UPS 750VA Tower UPS
    Product Line Easy UPS
    Brand Name APC by Schneider Electric
    Power Description
    Input Voltage 230 V AC
    Output Voltage 230 V AC
    Load Capacity 750 VA/525 W
    Waveform Type Sine Wave
    Input Voltage Range 160 V AC 295 V AC
    Output Frequency 60 Hz
    Input Frequency 65 Hz
    Technical Information
    Application/Usage SOHO Office
    Electronic
    Office
    Computer
    Overload Protection Yes
    Plug/Connector Type IEC 60320 C14
    Receptacle Type IEC 60320 C13
    AVR Yes
    Transfer Time 2 ms
    Receptacle Detail 6 x IEC 60320 C13
