DESCRIPTION

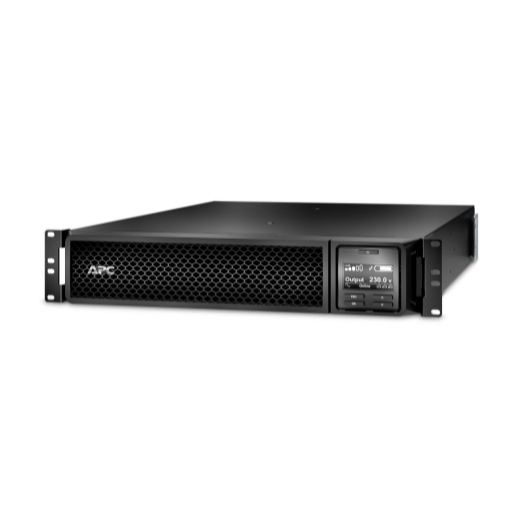

APC Smart-UPS On-Line, 2200VA, Rackmount 2U, 230V, 8x C13+2x C19 IEC outlets, SmartSlot, Extended runtime, W/ rail kit

This product is part of the Smart-UPS On-Line range that provides high density, true double-conversion on-line power protection. The SRT is a 2U rack/tower convertible UPS that is external battery compatible for more runtime during prolonged outages Ideal for servers, voice/data networks, medical labs, and light industrial applications. It conforms to CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, and VDE. Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
Main Input Voltage 230 V
Other Input Voltage 220 V 240 V
Main Output Voltage 230 V
Other Output Voltage 220 V 240 V
Rated power in W 1980 W
Rated power in VA 2200 VA
Input Connection Type- BS1363A British, IEC 60320 C20, Schuko CEE 7 / EU1-16P
Output connection type, 8 IEC 60320 C13, 2 IEC Jumpers, 2 IEC 60320 C19
Number of rack unit 2U
Cable length 2.44 m
Number of cables 1
Provided equipment- CD with software, Country-specific detachable power cord, Documentation CD, Installation guide, Rack mounting hardware, Rack mounting brackets, Rack mounting support rails, USB cable, Warranty card
Ambient air temperature for operation 0…40 °C
Relative humidity 0…95 % non-condensing
Operating altitude 0...10000 ft
Ambient air temperature for storage -20…50 °C
Storage Relative Humidity 0…95 % non-condensing
Storage altitude 0.00…15240.00 m
Acoustic level 55 dBA
Heat dissipation 535 Btu/h
IP degree of protection IP20

Mounting mode- Rack mounted
Replacement Battery - APCRBC141
Compatible Service bypass panels- SBP3000RMHW, SBP3000RMI
Compatible PDU-AP6003A, AP6015A, AP6020A, AP6120A, AP7552
Compatible Sensors- AP9335T, AP93
Compatible NMC -AP9613,AP9620, AP9640, AP9641, AP9643, AP9810
Compatible Mounting- SRTRK3, SRTRK4
