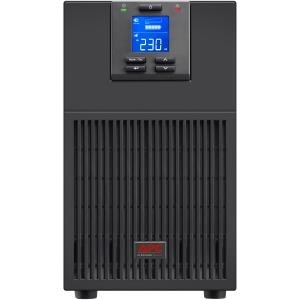

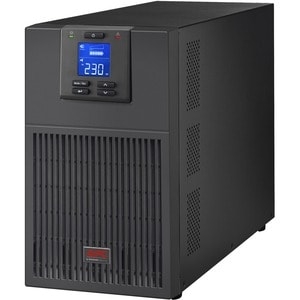

Apc - Schneider APC Easy UPS SRV 3000VA 230V SRV3KI
$1,788.00
| SKU: | 371214 |
|---|---|
| MPN: | SRV3KI Link |
| Manufacturer: | https://www.apc.com |
| Brand: | Apc - Schneider |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | Preorder 2-3 weeks |
| Fright Estimate |
Description
▼
High quality, Double-conversion On-line UPS designed for
essential power protection needs even in the most unstable power
conditions.
Guides & Documents
Specifications
▼
Controls/Indicators
| Status Indicators |
Multi-function LCD |
Miscellaneous
| Environmentally Friendly | Yes |
Interfaces/Ports
| Serial Port | Yes |
| EPO Port | No |
| USB (HID Compliant) Port | Yes |
Management
| Alarm | Overload |
| Low Battery | |
| On Battery |
Physical Characteristics
| Weight (Approximate) | 26.80 kg |
| Form Factor | Tower |
| Height | 336 mm |
| Width | 190 mm |
| Depth | 425 mm |
Environmental Conditions
| Maximum Operating Temperature | 40°C |
| Maximum Operating Elevation | 3 km |
| Maximum Storage Elevation | 14.76 km |
| Operating Humidity | 0% - 95% |
| Storage Relative Humidity | 0% - 95% |
| Storage Temperature | -20°C - 50°C |
Battery Information
| Battery Chemistry | Sealed Lead Acid (SLA) |
| Battery Size | 12V |
| Battery Capacity | 9000 mAh |
| Number of Batteries | 6 |
| Backup/Run Time (Half Load) | 10 Minute |
| Backup/Run Time (Full Load) | 4 Minute |
| Battery Characteristics | Maintenance-free, Sealed, Leak-proof |
| Replaceable Battery | Yes |
| DC System Voltage | 12 V DC |
| Typical Battery Recharge Time | 4 Hour |
General Information
| Product Type | Dual Conversion Online UPS |
| Manufacturer Part Number | SRV3KI |
| Manufacturer Website Address | http://www.schneider-electric.com.au |
| Manufacturer | Schneider Electric SA |
| Product Model | SRV3KI |
| Product Name | Easy UPS SRV 3000VA 230V |
| Product Line | Easy UPS |
| Brand Name | APC by Schneider Electric |
Technical Information
| Application/Usage | Business |
| Plug/Connector Type | IEC 60320 C14 |
| Phase | Single Phase |
| Receptacle Type | IEC 60320 C19 |
| IEC 60320 C13 | |
| Transfer Time | 0 ns |
| Receptacle Detail | 6 x IEC 60320 C13 |
| 1 x IEC 60320 C19 |
Power Description
| Input Voltage | 230 V AC |
| Output Voltage | 240 V AC |
| 230 V AC | |
| 220 V AC | |
| Load Capacity | 3 kVA/2.40 kW |
| Surge Energy Rating | 600 J |
| Waveform Type | Sine Wave |
| Input Voltage Range | 160 V AC 280 V AC |
| Output Frequency | 60 Hz |
| Input Frequency | 70 Hz |
