Warranty Information
Warranty
2 Years
Connector(s)
Connector Type(s)
1 - PCI Express x1
External Ports
1 - RJ-45
Environmental
Operating Temperature
0°C to 70°C (32°F to 158°F)
Storage Temperature
0°C to 100°C (32°F to 212°F)
Humidity
10% ~ 90% RH
Hardware
Ports
1
Interface
RJ45 (Gigabit Ethernet)
Bus Type
PCI Express
Card Type
Low Profile (SP bracket incl.)
Industry Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab
Chipset ID
Realtek - RTL8111
Indicators
LED Indicators
1 - Link/Activity (Green)

1 - Gigabit Detect (Yellow)
Packaging Information
Package Height
1.2 in [3.0 cm]
Package Length
5.5 in [14.0 cm]
Shipping (Package) Weight
3.3 oz [94.0 g]
Package Width
5.5 in [14.0 cm]
Package Quantity
1
Performance
Maximum Data Transfer Rate
1000 Mbps
Compatible Networks
10/100/1000 Mbps
Auto MDIX
Yes
Full Duplex Support
Yes
Jumbo Frame Support
9K max.
Supported Protocols
CSMA/CD
Physical Characteristics
Weight of Product
1.1 oz [30.0 g]
Color
Black
Material
Steel
Product Length
2.6 in [6.5 cm]
Product Width
0.0 in [1.0 mm]
Product Height
1.7 in [4.4 cm]
Power
Input Voltage
12V DC
Output Voltage
12V DC
Software
OS Compatibility
Windows® 2000, XP, Vista, 7, 8, 8.1, 10, 11
Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019
Mac OS X® 10.6 to 10.9
Linux 2.4.x and up - LTS Versions only
Special Notes / Requirements
System and Cable Requirements
Available PCI Express expansion card slot
What's in the Box
Included in Package
1 - Gigabit Ethernet PCI Express Card

1 - Standard Profile Bracket

1 - Instruction Manual

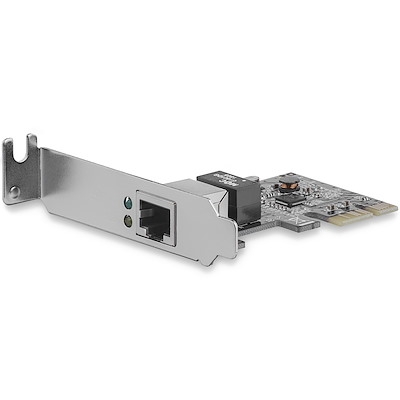

STARTECH 1 PORT GbE PCIe NETWORK CARD, LOW PROFILE, 2YR
