ACPS14.3 CME 14.3VDC 2.5A POWERPACK - 2YRS REQUIRED FOR HIKVISION HYBRID ALARM TP14.3VDC-2.5DC
$30.00
| SKU: | 419060 |
|---|---|
| MPN: | TP14.3VDC-2.5DC |
| Brand: | TACTICAL |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
▼

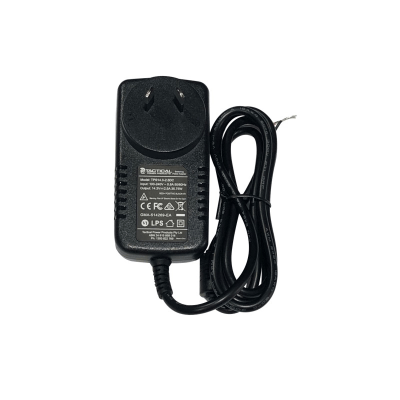

Tactical Power Supply, 14.3V DC, 2.5A, Plug Pack, is designed for ITE and indoor use only. TPS14.3-2.5DC IS A 14.3Vdc 2.5A continuously rated switching power supply adaptor. Overload protection is provided. Removal of the fault / short circuit condition will return the power supply to normal operation **Required for Hikvision Hybrid Alarm**
Specifications
▼
| Eco Range | TPS14.3-2.5DC |
| Output Voltage | 14.3 Vdc |
| Output Current | 2.5A Continuous |
| Output Channels | 2 CORE LEAD |
| Output Ripple | <50 mVp-p @ full load |
| AC on Indicator | BLUE LED illuminates when mains is applied |
| Input Voltage | 100-240 V ac ( +/ -10% ) 50Hz |
| Input Current | 0.8A @ full load |
| Working Temperature | 0 - 400 C without de-rating |
| Efficiency | VI |
| Dimensions | 110mm L x 55mm W |
| Mains Connection | Integrated approved 240V mains plug |
| Warranty | 2 Years |
| Safety Standards | Safety Standard AS NZS 62368:2018 &AS/NZS3112.2017 Certificate of Compliance GMA-514269-EA |
| EMC Standards | AS/NZS CISPR 32:2015 AMD 1:2020 ( Class B Conducted and Radiated ) |
