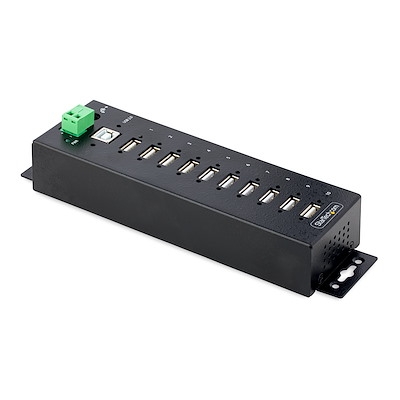

STARTECH 10 PORT INDUSTRIAL USB 2.0 HUB, MOUNTABLE USB EXPANSION HUB 2YR USB210AIND-USB-A-HUB
| SKU: | 405015 |
|---|---|
| MPN: | USB210AIND-USB-A-HUB Link |
| Manufacturer: | https://www.startech.com |
| Brand: | Startech |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
- 10-PORT INDUSTRIAL USB 2.0 Hub: Cold-rolled steel construction ensures durability in harsh environments (32 to 140°F/0 to 60°C at 95% RH); 10 Locking USB-A downstream ports; USB 2.0 Compliant; 480Mbps shared bandwidth; OS independent
- ESD PROTECTION: Level 4 ESD rugged USB Hub features 15kV air and 8kV contact electrostatic protection for the upstream and downstream ports preventing device dropouts or damage; The Hub supplies up to 5V 0.5A per port suitable for most USB peripherals
- FLEXIBLE MOUNTING: Multi-port USB Hub features built-in mounting brackets for wall/desk installations; Included DIN rail mounting kit; All the USB ports on the Hub feature screw-lock connectors for preventing accidental disconnection
- POWER OPTIONS: Ten-port industrial Hub features power redundancy using the DC barrel plug and Terminal Block port (AC adapter not incl); 5 to 24V DC external power is required; Power the Hub via the 2-wire Terminal Block using ITB20D3250 (sold separately)
- CONNECTIVITY TOOLS: Optimize the performance and security of this TAA-compliant mountable USB Hub, using the included USB Event Monitoring utility (available for download)
Specifications
Warranty Information
Warranty
2 Years
Connector(s)
Connector Type(s)
10 - USB 2.0 Type-A (4 pin, 480Mbps)
1 - USB Type-B (4 pin) USB 2.0
1 - Terminal Block (2 Wire)
External Ports
1 - Barrel Power Connector (Size M, OD:5.50, ID: 2.10)
Environmental
Operating Temperature
32°F to 140°F (0°C to 60°C)
Storage Temperature
-4°F to 167°F (-20°C to 75°C)
Humidity
5% - 95% RH
Hardware
USB-C Device Port(s)
No
USB-C Host Connection
No
Fast-Charge Port(s)
No
Ports
10
Bus Type
USB 2.0
Industry Standards
USB 2.0 - Backward compatible with USB 1.1 and 1.0
Chipset ID
Terminus Tech - FE2.1
Indicators
LED Indicators
1 - Solid Green = Receiving power from DC power input or DC 2-wire Terminal Block power input
Off = No external power
Packaging Information
Package Length
6.6 in [16.8 cm]
Package Width
9.6 in [24.5 cm]
Package Height
2.2 in [5.5 cm]
Shipping (Package) Weight
1.4 lb [0.6 kg]
Package Quantity
1
Performance
Maximum Data Transfer Rate
480 Mbps
Type and Rate
USB 2.0 - 480 Mbit/s
UASP Support
No
ESD Protection
+/-8kV (Contact)
+/-15kV (Air)
Physical Characteristics
Color
Black
Form Factor
Industrial
Product Length
7.8 in [19.8 cm]
Product Width
2.2 in [5.6 cm]
Product Height
1.2 in [3.1 cm]
Weight of Product
12.0 oz [340.0 g]
Material
Steel
Power
Power Source
Not Included (DC/Terminal Block)
Plug Type
M
Software
OS Compatibility
OS Independent; No additional drivers or software required
Special Notes / Requirements
System and Cable Requirements
Available USB 2.0 (or higher) Type-A port
What's in the Box
Included in Package
1 - Industrial USB Hub
1 - 6 ft [1.8 m] Screw Locking USB-B to USB-A Cable
2 - DIN Rail Mounting Brackets
1 - Screw Kit
1 - Quick-Start Guide
