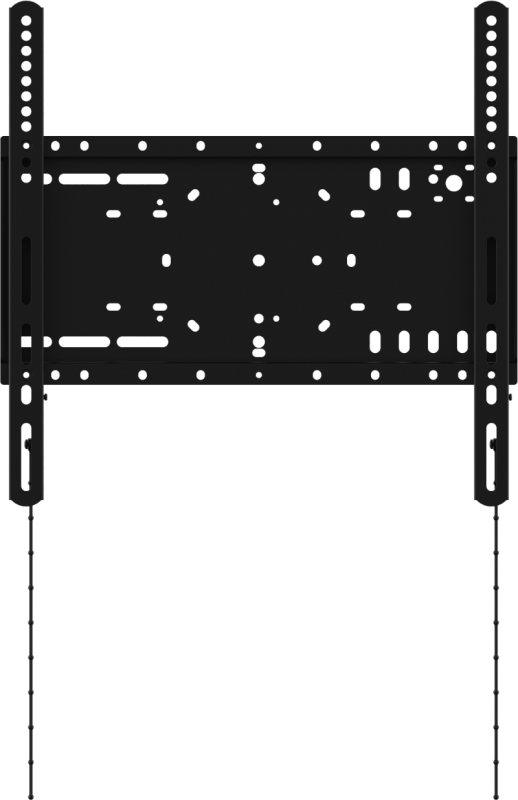

    VISION HEAVY DUTY DISPLAY WALL MOUNT, BLACK - FOR HUB 2S, 37-60" DISPLAYS, VESA 400X400 VFM-W4X4

    $177.00
    SKU:384444
    MPN:VFM-W4X4 Link
    Manufacturer:https://visionaudiovisual.com
    Brand: Microsoft
    Warranty:Standard Manufacturer's Warranty
    Availability:

    In stock

    Fright Estimate
    Add to Compare

    Vision’s Vision Flat-panel Mount - Wall range is designed by Vision's engineering team for professional AV installers. This mount is no-compromise: very strong, fast to install, highly adjustable,  everything included. The VFM-W4X4 fits any flat-panel LCD or LED screen which has rear mounting holes up to 400 wide x 400 mm tall apart.

    • Heavy Duty

      Interactive flat panels are large and very heavy. Vision’s VFM-W4X4 uses heavy gauge sheet metal to take the weight up to SWL 100 kg / 220 lb safely.

    • Everything Included

      Vision includes everything you need including a load of M5, 6, and 8 bolts in varying lengths to fix the vertical arms to the rear of the display.

    • For 32-75" Displays



      Fits most displays from 32-75″ subject to VESA pattern and weight limit. Note: curved screens are not supported by this mount.



    • Meets ADA Regulations

      The thin design holds the display just 30 mm / 1.2" off the wall. This looks better, reduces snagging risk, and because the load is close to the wall the mount has a higher safe working load rating.

    • Designed for Professionals

      A proven design allows fast fixing to stud or masonry walls. Vertically slotted holes on the horizontal part allowing leveling adjustment after fixing, and side to side adjustment.

    • Latches Securely

      The display latches on the horizontal section as the display is hung in place. Snap the plastic pull-rods off to length so they are hidden behind the display. Give the pull-rods a downward tug to unlatch the display.

    • Side by Side

      Two horizontal sections can be fixed together side by side for dual-display video conference or huddle room applications. Or extend the horizontal to bridge wide load bearing points in a wall.

    • Hide Media Player

      Thoughtfully placed VESA 100 x 100 mm holes on the horizontal part  allow a thin media player to fix behind the display out of sight.

    • PRODUCT DIMENSIONS

      445 x 435 x 30 mm / 17.5″ x 17.1″ x 1.2″ (width x height x depth)

    • PACKAGED DIMENSIONS

      480 x 235 x 40 mm / 18.9″ x 9.3″ x 1.6″

    • PRODUCT WEIGHT

      2.9 kg (6.3 lbs)

    • PACKAGED WEIGHT

      3.5 kg (7.7 lbs)

    • SAFE WORKING LOAD

      100 kg (220 lbs)

    • CONSTRUCTION MATERIAL

      Cold-rolled Steel 2.5 mm (0.10")

    • COLOUR

      Black

    • VESA SIZES

      400 x 400 mm
      400 x 300 mm
      400 x 200 mm
      350 x 350 mm
      300 x 400 mm
      300 x 300 mm
      200 x 400 mm
      200 x 300 mm
      200 x 200 mm

    • ACCESSORIES INCLUDED

      4 x M5 16 mm screw
      4 x M6 16 mm screw
      4 x M6 25 mm screw
      4 x M8 30 mm screw
      4 x M8 50 mm screw
      4 x 13 mm thick nylon spacers

    • WARRANTY

      Lifetime return-to-base

    • COMPLIANCES

      RoHS, ADA (Americans with Disability Act) Compliant

    • OPTIONAL ADD-ONS

      VFM-WLS Side Shelf [EU SAP: 4857149 / US SAP: 13557610]
      VFM-WVC Video Conferencing Shelf [EU SAP: 5048878 / US SAP: 13557673]

    • ORDER PART CODE

      VFM-W4X4 [EU SAP: 4934292 / US SAP: 13557601]

    • COUNTRY OF ORIGIN

      China

    • ISO

      ISO 9001:2015

    VISION HEAVY DUTY DISPLAY WALL MOUNT, BLACK - FOR HUB 2S, 37-60" DISPLAYS, VESA 400X400
