    • DrayTek VDSL2 35b/ADSL2+ Router with 1 x GbE WAN/LAN, USB 3G/4G backup, 3 x GbE LANs, Object-based SPI Firewall, CSM, QoS, 802.11ax (AX3000) WiFi, 2 x VPNs, 2 x SSL VPNs, and support VigorACS 2 Vigor 2765ax

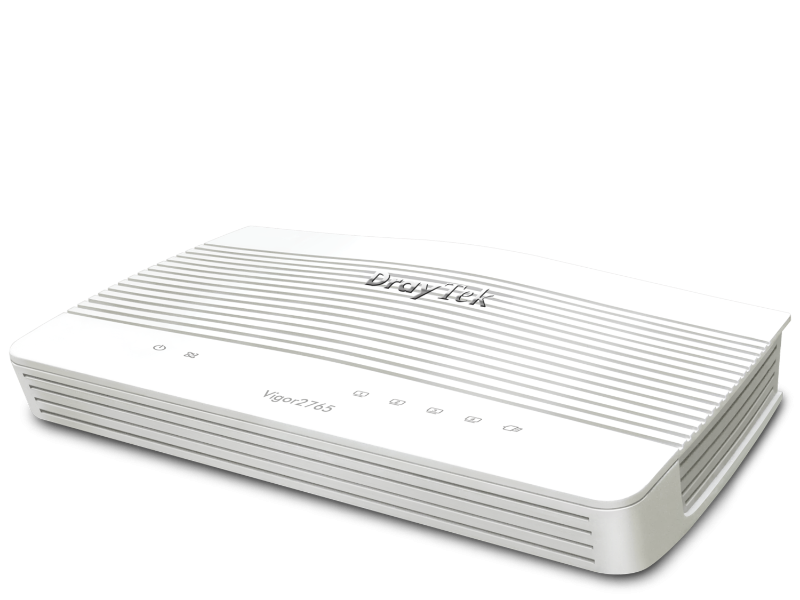

    main product photo

    DrayTek VDSL2 35b/ADSL2+ Router with 1 x GbE WAN/LAN, USB 3G/4G backup, 3 x GbE LANs, Object-based SPI Firewall, CSM, QoS, 802.11ax (AX3000) WiFi, 2 x VPNs, 2 x SSL VPNs, and support VigorACS 2 Vigor 2765ax

    $458.00
    SKU:391888
    MPN:Vigor 2765ax Link
    Manufacturer:https://www.draytek.com
    Brand: Draytek
    Warranty:Standard Manufacturer's Warranty
    Availability:

    In stock

    Fright Estimate
    Add to Compare

    VDSL2 35b Supervectoring Router for Professionals

    Vigor2765 Series is a VDSL2 35b supervectoring modem, a firewall, and a VPN router. The router has 4x GbE LAN port, one of which is switchable to be a backup WAN interface. It's highly configurable for an abundance of features including web content filtering, bandwidth limit, QoS and lots more, perfect for professional users who would like to take full control of the network. The series includes models with built-in 11ac Wave 2 WiFi, 802.11ax WiFi, and VoIP gateway.

    Interface
    Fixed WAN Port 1x RJ-11 for VDSL2 35b or ADSL2/2+
    LAN/WAN Switchable Port 1x 10/100/1000Base-T, RJ-45 (P4)
    Fixed LAN Port 3x 10/100/1000Base-T, RJ-45
    USB Port 2x USB 2.0 for 3G/4G/LTE USB modem, storage, printer or thermometer
    WiFi Antenna 2x External Dipole, Gain: 4 dBi for 5GHz, 2 dBi for 2.4GHz, (ac model)
    2x External Dipole, Gain: 2.5 dBi for 5GHz, 2.7 dBi for 2.4GHz (ax model)
    2.4G WLAN 802.11n 2x2 MIMO, Up to 400Mbps Link Rate (ac model)
    802.11ax 2x2 MIMO, up to 574Mbps Link Rate (ax model)
    5G WLAN 802.11ac Wave 2 2x2 MU-MIMO, Up to 867Mbps Link Rate (ac model)
    802.11ax 2x2 MU-MIMO, up to 2402Mbps Link Rate (ax model)
    FXS RJ-11 2 (V model)
    Performance
    Max. Throughput on VDSL 300 Mbps
    NAT Throughput 600 Mbps
    NAT Throughput w/ Hardware Acceleration 940 Mbps
    IPsec VPN Performance 150 Mbps (AES 256 bits)
    SSL VPN Performance 100 Mbps
    Max. Number of NAT Sessions 50,000
    Max. Concurrent VPN Tunnels 2
    DSL
    VDSL Standards ITU-T G.993.2 Annex A/B/M/Q (up to Profile 35b but excluding 30a)
    T1.424
    ITU-T G.993.5 (Vectoring)
    VDSL2 Profile 8a, 8b, 8c, 8d, 12a, 12b, 17a, 30a, 35b (not G.fast)
    ADSL Standards ITU-T G.992.1 (G.dmt), ITU-T G.992.3 (G.dmt.bis), ITU-T G.992.5 (ADSL2+) (G.adslplus), T1.413 Issue 2
    Other Standards ITU-T G.994.1 (G.hs), ITU-T G.997.1 (G.ploam), ITU-T G.998.4 (Retransmission)
    Band Plan 998, 997
    Internet Connection
    IPv4 PPPoE, PPPoA, DHCP, Static IP, MPoA, PPTP/L2TP
    IPv6 PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 Static Tunnel
    Multi-VLAN/PVC
    3G/4G/LTE WAN with USB modem
    WAN Failover
    Connection Detection ARP, Strict ARP, Ping
    WAN Data Budget
    Dynamic DNS
    DrayDDNS
    LAN Management
    VLAN 802.1q Tag-based, Port-based
    Max. Number of VLAN 8
    Number of LAN Subnet 4
    DHCP Server Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC
    Wired 802.1x Authentication
    Port Mirroring
    Local DNS Server
    Conditional DNS Forwarding
    Hotspot Web Portal
    Hotspot Authentication Click-Through, Social Login, SMS PIN, Mail PIN, RADIUS, External Portal Server
    Networking
    Routing IPv4 Static Routing, IPv6 Static Routing, Inter-VLAN Routing, RIP v1/v2
    Policy-based Routing Protocol, IP Address, Port, Domain, Country
    DNS Security (DNSSEC)
    IGMP IGMP v2/v3, IGMP Proxy, IGMP Snooping & Fast Leave
    SMB File Sharing  (Requires external storage)
    VPN
    LAN-to-LAN
    Teleworker-to-LAN
    Protocols PPTP, L2TP, IPsec, L2TP over IPsec, SSL, IKEv2, IKEv2-EAP, IPsec-XAuth, OpenVPN
    User Authentication Local, RADIUS, mOTP
    IKE Authentication Pre-Shared Key, X.509
    IPsec Authentication SHA-1, SHA-256, MD5
    Encryption MPPE, DES, 3DES, AES128, AES192, AES256
    Single-Armed VPN
    NAT-Traversal (NAT-T)
    DrayTek VPN Matcher
    Firewall & Content Filtering
    NAT Port Redirection, Open Ports, Port Triggering, DMZ Host, UPnP
    ALG (Application Layer Gateway) SIP, RTSP, FTP, H.323
    VPN Pass-Through PPTP, L2TP, IPsec
    IP-based Firewall Policy
    Content Filtering Application, URL, DNS Keyword, Web Features, Web Category* (*: subscription required)
    DoS Attack Defense
    Spoofing Defense
    Bandwidth Management
    IP-based Bandwidth Limit
    IP-based Session Limit
    QoS (Quality of Service) TOS, DSCP, 802.1p, IP Address, Port, Application
    VoIP Prioritization
    APP QoS
    Wireless LAN (ac/ax model)
    WiFi 6  (ax model)
    Number of SSID 4 per radio
    Security Mode OWE, WEP, WPA, WPA2, Mixed(WPA+WPA2), WPA3
    Authentication Pre-Shared Key, 802.1X
    OFDMA  (ax model)
    WPS PIN, PBC
    WDS Repeater (5GHz only)
    Access Control Access List, Client Isolation, Hide SSID, WLAN Scheduling
    AirTime Fairness
    Band Steering
    MU-MIMO  (5GHz Only)
    WMM
    VoIP Gateway (V model)
    Protocol SIP, RTP/RTCP, ZRTP
    SIP Registrars 6
    Dial Plan Phone Book, Digit Map, Call Barring, Regional
    Call Features Call Waiting, Call Transfer, Scheduled DND, Hotline
    Voice Codec G.711 A/u law, G.726, G.729 A/B
    Caller ID FSK_ETSI, FSK_BELLCORE, DTMF
    Management
    Local Service HTTP, HTTPS, Telnet, SSH v2, FTP, TR-069
    Config File Export & Import
    Config File Compatibility Vigor2760 Series, Vigor2762 Series, Vigor2763 Series, Vigor2765 Series, Vigor2766 Series
    Firmware Upgrade TFTP, HTTP, TR-069
    2-Level Administration Privilege
    Access Control Access List, Brute Force Protection
    Notification Alert SMS, E-mail
    Netflow  (v5, v9, IPFIX)
    SNMP v1, v2c, v3
    Syslog
    Managed by VigorACS
    Central AP Management 2 VigorAP
    Mesh Network 7 VigorAP (ac model)
    Physical
    Power Supply DC 12V @ 1.5A-2A
    Max. Power Consumption 21.6 watts (Vac model)
    Dimension 207mm x 131mm x 42mm
    194mm x 155mm x 50mm (ax model)
    Weight 500g (ac model)
    Operating Temperature 0 to 45°C
    Storage Temperature -25 to 70°C
    Operating Humidity (non-condensing) 10 to 90%
    Certificate CE FCC
