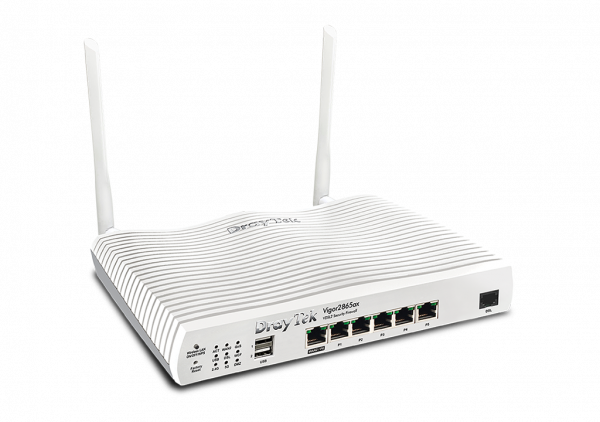

    main product photo

    DrayTek Multi WAN Router with VDSL2 35b/ADSL2+1 x GbE WAN/LAN, and 3G/4G USB WAN port for Load Balancing and Fail-over, 5 x GbE LANs, Object-based SPI Firewall, CSM, QoS, 802.11ax (AX2300) WiFi, 32 x VPNs, 16 x SSL VPNs Vigor 2865ax

    Special Price $635.00 Regular Price $731.00
    SKU:383700
    MPN:Vigor 2865ax Link
    Manufacturer:https://www.draytek.com.au
    Brand: Draytek
    Warranty:Standard Manufacturer's Warranty
    Availability:

    In stock

    Fright Estimate
    Add to Compare
    Interface
    Fixed WAN Port 1 x RJ-11 for VDSL2 35b or ADSL2/2+
    LAN/WAN Switchable Port 1 x 10/100/1000Base-TX RJ-45
    Fixed LAN Port 5 x 10/100/1000Base-TX RJ-45
    USB Port 2 x USB 2.0 for 3G/4G/LTE USB modem, storage, printer or thermometer
    Wi-Fi Antenna 2 x External Dipole
    Gain: 3.5 dBi for 5GHz, 2.3 dBi for 2.4GHz (ax/ac/Vac models)
    2.4G WLAN 802.11n 2×2 MIMO 400Mbps (ac/Vac models)
    802.11ax 2×2 MIMO 574Mbps (ax model)
    5G WLAN 802.11ac Wave 2 2×2 MU-MIMO 867Mbps (ac/Vac models)
    802.11ax 2×2 MU-MIMO 2402Mbps (ax model)
    RJ-11 Port for Voice 2 x FXS (Vac model)
    Performance
    NAT Throughput 800 Mbps
    NAT Throughput
    with Hardware Acceleration    		 940 Mbps (Ethernet WAN)
    1.3 Gbps (Ethernet WAN + DSL WAN)
    IPsec VPN Performance 300 Mbps (AES 256 bits)
    SSL VPN Performance 130 Mbps
    Max. Number of NAT Sessions 60,000
    Max. Concurrent VPN Tunnels 32
    Max. Concurrent OpenVPN / SSL-VPN 16
    VDSL/ADSL
    VDSL Standards ITU-T G.993.2 Annex A/B/M/Q (up to Profile 35b but excluding 30a)
    T1.424
    ITU-T G.993.5 (Vectoring)
    VDSL2 Profile 8a, 8b, 8c, 8d, 12a, 12b, 17a, 35b (not G.fast)
    ADSL Standards ITU-T G.992.1 (G.dmt), ITU-T G.992.3 (G.dmt.bis), ITU-T G.992.5 (ADSL2+) (G.adslplus), T1.413 Issue 2
    Other Standards ITU-T G.994.1 (G.hs), ITU-T G.997.1 (G.ploam), ITU-T G.998.4 (Retransmission)
    Band Plan 998, 997
    Internet Connection
    IPv4 PPPoE, DHCP, Static IP, PPTP/L2TP
    IPv6 PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 Static Tunnel
    802.1p/q Multi-VLAN Tagging
    Multi-VLAN/PVC
    Wireless WAN 2 (ac/Vac models)
    3G/4G/LTE WAN with USB modem
    Load Balancing IP-based, Session-based
    WAN Active on Demand Link Failure, Traffic Threshold
    Connection Detection ARP, Ping
    WAN Data Budget
    Dynamic DNS
    DrayDDNS
    LAN Management
    VLAN 802.1q Tag-based, Port-based
    Max. Number of VLAN 16
    Number of LAN Subnet 8
    DHCP Server Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC
    LAN IP Alias
    Wired 802.1x Authentication
    Port Mirroring
    Local DNS Server
    Conditional DNS Forwarding
    Hotspot Web Portal
    Hotspot Authentication Click-Through, Social Login, SMS PIN, Voucher PIN, RADIUS, External Portal Server
    Networking
    Routing IPv4 Static Routing, IPv6 Static Routing, Inter-VLAN Routing, RIP, BGP (IPv4)
    Policy-based Routing Protocol, IP Address, Port, Domain, Country
    High Availability
    DNS Security (DNSSEC)
    IGMP IGMP v2/v3, IGMP Proxy, IGMP Snooping & Fast Leave
    Local RADIUS server
    SMB File Sharing  (Requires external storage)
    VPN
    LAN-to-LAN
    Teleworker-to-LAN
    Protocols PPTP, L2TP, IPsec, L2TP over IPsec, SSL, GRE, IKEv2, IKEv2-EAP, IPsec-XAuth, OpenVPN(Host to LAN)
    User Authentication Local, RADIUS, LDAP, TACACS+, mOTP
    IKE Authentication Pre-Shared Key, X.509
    IPsec Authentication SHA-1, SHA-256
    Encryption MPPE, DES, 3DES, AES
    VPN Redundancy Load Balancing, Failover
    Single-Armed VPN
    NAT-Traversal (NAT-T)
    DrayTek VPN Matcher
    Firewall & Content Filtering
    NAT Port Redirection, Open Ports, Port Triggering, DMZ Host, UPnP
    ALG (Application Layer Gateway) SIP, RTSP, FTP, H.323
    VPN Pass-Through PPTP, L2TP, IPsec
    IP-based Firewall Policy
    Content Filtering Application, URL, DNS Keyword, Web Features, Web Category* (* subscription required)
    DoS Attack Defence
    Spoofing Defense
    Bandwidth Management
    IP-based Bandwidth Limit
    IP-based Session Limit
    QoS (Quality of Service) TOS, DSCP, 802.1p, IP Address, Port, Application
    VoIP Prioritisation
    Wireless LAN (ax/ac/Vac models)
    Number of SSID 4 per radio band
    Security WEP, WPA, WPA2, Mixed(WPA+WPA2), WPA3
    Authentication Pre-Shared Key, 802.1x
    WPS PIN, PBC
    WDS Repeater (5GHz only)
    Access Control Access List, Client Isolation, Hide SSID, Wi-Fi Scheduling
    AirTime Fairness
    Band Steering
    MU-MIMO (5GHz Only)
    WMM
    VoIP Gateway (V model)
    Protocol SIP, RTP/RTCP, ZRTP
    SIP Registrars 12
    Dial Plan Phone Book, Digit Map, Call Barring, Regional
    Call Features Call Waiting, Call Transfer, Scheduled DND, Hotline
    Voice Codec G.711 A/u law, G.723.1, G.726, G.729 A/B
    Caller ID FSK_ETSI, FSK_BELLCORE, DTMF
    Management
    Local Service HTTP, HTTPS, Telnet, SSH v2, FTP, TR-069
    Config File Export & Import
    Config File Compatibility Vigor2862
    Firmware Upgrade TFTP, HTTP, TR-069
    2-Level Administration Privilege
    Access Control Access List, Brute Force Protection
    Notification Alert SMS, E-mail
    SNMP v1, v2c, v3
    Syslog
    Managed by VigorACS
    Central VPN Management 8 remote Vigor routers
    Central AP Management 20 VigorAPs
    Mesh Network 7 VigorAPs (ac/Vac models only)
    Central Switch Management 10 VigorSwitches
    Physical
    Power Supply DC 12V @ 2A
    Max. Power Consumption 24 watts (ax/ac/Vac model)
    Dimension 241mm x 166mm x 46mm
    Weight 620g (ac model)
    Operating Temperature 0 to 45°C
    Storage Temperature -25 to 70°C
    Operating Humidity (non-condensing) 10 to 90%
