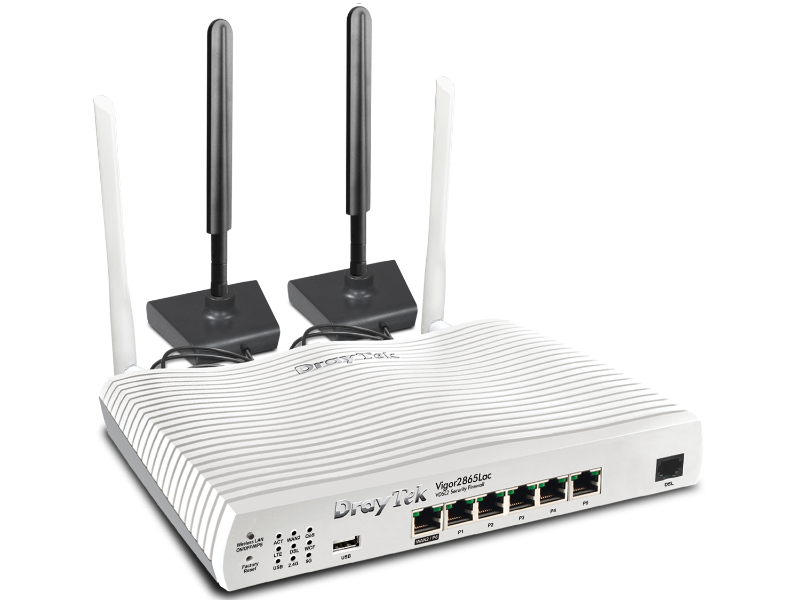

DrayTek Vigor 2865L, Multi WAN Router with a Cat6 4G LTE SIM slot, 1 x GbE WAN/LAN, and 3G/4G USB WAN port for Load Balancing and Fail-over, 5 x GbE LANs, Object-based SPI Firewall, CSM, QoS, 32 x VPNs, 16 x SSL VPNs, and support VigorACS 2
$780.00
| SKU: | 384474 |
|---|---|
| MPN: | Vigor 2865L Link |
| Manufacturer: | https://www.draytek.com |
| Brand: | Draytek |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
▼
4G LTE & VDSL 35b Router for SMB
Vigor2865 LTE Series is a VDSL2 35b/ADSL2+ firewall router with embedded 4G/LTE connectivity, making it ideal for SMB/Branch office where Internet connection is the core of business continuity, or new business locations that wired connection is yet to be available.
It has 1 x RJ-11 WAN port for VDSL2/ADSL2+ (including profile 35b Super Vectoring), 1 x GbE WAN/LAN switchable port, 2 x embedded SIM slots supporting LTE Cat 6 (1 SIM online at a time), and 1 x versatile USB port for additional 4G/LTE connection or other applications. All these WANs together provides robust load-balancing/failover functionality.
The series includes models without wireless LAN and with built-in 802.11ac Wave 2 wireless LAN. It also offers other professional features including QoS, High Availability, Route Policy, SPI Firewall, Content Filtering and more. It can act as the controller to manage other VigorAP and VigorSwitch in LAN, or register to VigorACS for cloud-based management.
Specifications
▼
Interface |
|
| Fixed WAN Port | 1x RJ-11 for VDSL2 35b or ADSL2/2+ |
| LAN/WAN Switchable Port | 1x 10/100/1000Base-TX RJ-45 |
| Fixed LAN Port | 5x 10/100/1000Base-TX RJ-45 |
| SIM Slot | 2x Standard-Sized (1 SIM online at a time) |
| USB Port | 1x USB 2.0 |
| LTE Antenna | 2x External Dipole Gain: 3 dBi |
| Wireless Antenna | 2x External Dipole Gain: 3.5 dBi for 5GHz, 2.3 dBi for 2.4GHz (ac model) |
| 2.4G WLAN | 802.11n 2x2 MIMO Up to 400Mbps Link Rate (ac model) |
| 5G WLAN | 802.11ac Wave 2 2x2 MU-MIMO Up to 867Mbps Link Rate (ac model) |
Performance |
|
| NAT Throughput | 800 Mbps |
| NAT Throughput w/ Hardware Acceleration | 940 Mbps (Ethernet WAN) 1.3 Gbps (Ethernet WAN + DSL WAN) |
| IPsec VPN Performance | 300 Mbps (AES 256 bits) |
| SSL VPN Performance | 130 Mbps |
| Max. Number of NAT Sessions | 60,000 |
| Max. Concurrent VPN Tunnels | 32 |
| Max. Concurrent OpenVPN + SSL VPN | 16 |
DSL |
|
| VDSL Standards | ITU-T G.993.2 Annex A/B/M/Q (up to Profile 35b) T1.424 ITU-T G.993.5 (Vectoring) |
| VDSL2 Profile | 8a, 8b, 8c, 8d, 12a, 12b, 17a, 35b (not G.fast) |
| ADSL Standards | ITU-T G.992.1 (G.dmt), ITU-T G.992.3 (G.dmt.bis), ITU-T G.992.5 (ADSL2+) (G.adslplus), T1.413 Issue 2 |
| Other Standards | ITU-T G.994.1 (G.hs), ITU-T G.997.1 (G.ploam), ITU-T G.998.4 (Retransmission) |
| Band Plan | 998, 997 |
LTE |
|
| LTE Category | 6 |
| Max. Data Rate | 300 Mbps downlink, 50 Mbps uplink |
| FDD Band | 1 (2100MHz), 3 (1800MHz), 7 (2600MHz), 8 (900MHz), 20 (800MHz), 28 (700MHz) |
| TDD Band | 38 (2600MHz), 40 (2300MHz), 41(2540-2640MHz, for Saudi Arabia only) |
| WCDMA (3G) Band | 1, 8 |
| SMS Gateway | Learn More |
| For other band availability, please contact your local DrayTek distributor or us | |
Internet Connection |
|
| IPv4 | PPPoE, DHCP, Static IP, PPTP/L2TP |
| IPv6 | PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 Static Tunnel |
| 802.1p/q Multi-VLAN Tagging | |
| Multi-VLAN/PVC | |
| Wireless WAN | 2 (ac model) |
| 3G/4G/LTE WAN with USB modem | |
| Load Balancing | IP-based, Session-based |
| WAN Active on Demand | Link Failure, Traffic Threshold |
| Connection Detection | ARP, Ping |
| WAN Data Budget | |
| Dynamic DNS | |
| DrayDDNS | |
LAN Management |
|
| VLAN | 802.1q Tag-based, Port-based |
| Max. Number of VLAN | 16 |
| Number of LAN Subnet | 8 |
| DHCP Server | Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC |
| LAN IP Alias | |
| Wired 802.1x Authentication | |
| Port Mirroring | |
| Local DNS Server | |
| Conditional DNS Forwarding | |
| Hotspot Web Portal | |
| Hotspot Authentication | Click-Through, Social Login, SMS PIN, Voucher PIN, RADIUS, External Portal Server |
Networking |
|
| Routing | IPv4 Static Routing, IPv6 Static Routing, Inter-VLAN Routing, RIP v1/v2, BGP |
| Policy-based Routing | Protocol, IP Address, Port, Domain, Country |
| High Availability | |
| DNS Security (DNSSEC) | |
| IGMP | IGMP v2/v3, IGMP Proxy, IGMP Snooping & Fast Leave |
| Local RADIUS server | |
| SMB File Sharing | (Requires external storage) |
VPN |
|
| LAN-to-LAN | |
| Teleworker-to-LAN | |
| Protocols | PPTP, L2TP, IPsec, L2TP over IPsec, SSL, GRE, IKEv2, IKEv2-EAP, IPsec-XAuth, OpenVPN |
| User Authentication | Local, RADIUS, LDAP, TACACS+, mOTP |
| IKE Authentication | Pre-Shared Key, X.509 |
| IPsec Authentication | SHA-1, SHA-256 |
| Encryption | MPPE, DES, 3DES, AES |
| VPN Trunk (Redundancy) | Load Balancing, Failover |
| Single-Armed VPN | |
| NAT-Traversal (NAT-T) | |
| DrayTek VPN Matcher | |
Firewall & Content Filtering |
|
| NAT | Port Redirection, Open Ports, Port Triggering, DMZ Host, UPnP |
| ALG (Application Layer Gateway) | SIP, RTSP, FTP, H.323 |
| VPN Pass-Through | PPTP, L2TP, IPsec |
| IP-based Firewall Policy | |
| Content Filtering | Application, URL, DNS Keyword, Web Features, Web Category* (*: subscription required) |
| DoS Attack Defense | |
| Spoofing Defense | |
Bandwidth Management |
|
| IP-based Bandwidth Limit | |
| IP-based Session Limit | |
| QoS (Quality of Service) | TOS, DSCP, 802.1p, IP Address, Port, Application |
| VoIP Prioritization | |
Wireless LAN (ac model) |
|
| Number of SSID | 4 per radio band |
| Security Mode | OWE, WEP, WPA, WPA2, Mixed(WPA+WPA2), WPA3 |
| Authentication | Pre-Shared Key, 802.1X |
| WPS | PIN, PBC |
| WDS | Repeater (5GHz only) |
| Access Control | Access List, Client Isolation, Hide SSID, WLAN Scheduling |
| AirTime Fairness | |
| Band Steering | |
| MU-MIMO | (5GHz Only) |
| WMM | |
Management |
|
| Local Service | HTTP, HTTPS, Telnet, SSH v2, FTP, TR-069 |
| Config File Export & Import | |
| Config File Compatibility | Vigor2862 LTE |
| Firmware Upgrade | TFTP, HTTP, TR-069 |
| 2-Level Administration Privilege | |
| Access Control | Access List, Brute Force Protection |
| Notification Alert | SMS, E-mail |
| SNMP | v1, v2c, v3 |
| Syslog | |
| Managed by VigorACS | |
| Central VPN Management | 8 VPN |
| Central AP Management | 20 VigorAP |
| Mesh Network | 7 VigorAP (ac model) |
| Central Switch Management | 10 VigorSwitch |
Physical |
|
| Power Supply | DC 12V @ 2A-2.5A |
| Max. Power Consumption | 28.1 watts |
| Dimension | 241mm x 166mm x 46mm |
| Weight | 670g (Lac model) |
| Operating Temperature | 0 to 45°C |
| Storage Temperature | -25 to 70°C |
| Operating Humidity (non-condensing) | 10 to 90% |
| Certificate |  |
