    • DrayTek VigorAP 918RIP67 Rated Dust & Water Resistant Outdoor 802.11ac wireless AP with high TX power up to 25dBm, 2 x Omni-directional antennae, 1 x Gigabit LAN port with PoE-PD port, 2 x physical VLANs, and support VigorACS 2/3

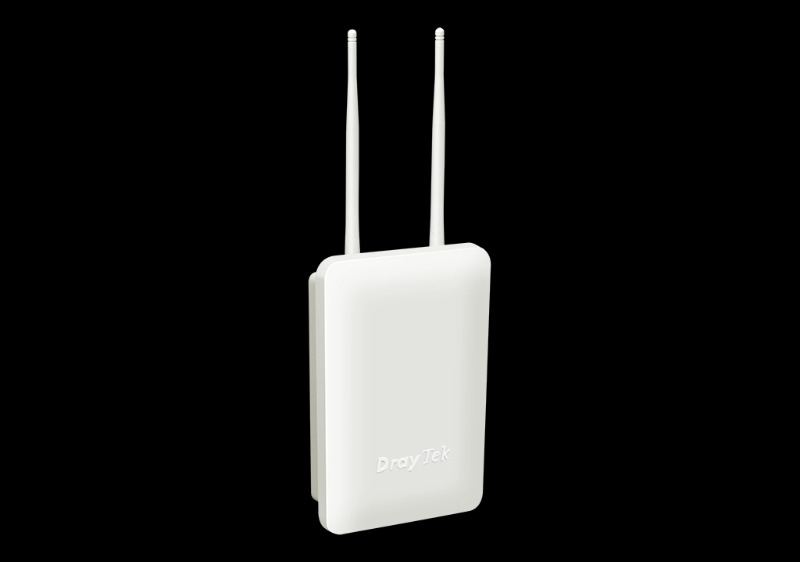

    main product photo

    DrayTek VigorAP 918RIP67 Rated Dust & Water Resistant Outdoor 802.11ac wireless AP with high TX power up to 25dBm, 2 x Omni-directional antennae, 1 x Gigabit LAN port with PoE-PD port, 2 x physical VLANs, and support VigorACS 2/3

    $519.00
    SKU:415937
    MPN:VigorAP 918R
    Manufacturer:https://www.draytek.com.au/
    Brand: Draytek
    Warranty:Standard Manufacturer's Warranty
    Availability:

    In stock

    Fright Estimate
    Add to Compare

    Specifications

    Interface
    LAN Port 1x 10/100/1000Base-T Ethernet, RJ-45, PoE-In
    1x 10/100/1000Base-T Ethernet, RJ-45, PoE-Out (model RPD)
    Antenna 2x Dual-Band dipole External (Gain: 5 dBi for 5GHz, 3.5 dBi for 2.4GHz)
    1x internal 11 dBi 5GHz Directional Patched (model RPD)
    Built-In Sensor Temperature & Humidity
    Button 1x Factory Reset Button
    Capacity
    2.4GHz Peak Speed 400 Mbps
    5GHz Peak Speed 867 Mbps
    Max. Concurrent Active Users 256 (128 per band)
    WLAN
    2.4GHz Standard IEEE 802.11b/g/n 2×2 MIMO
    5GHz Standard IEEE 802.11a/n/ac Wave 2 2×2 MU-MIMO
    Operating Mode AP, Mesh Root, Mesh Node, Range Extender
    Roaming AP-Assisted Roaming, PMK-Caching, Pre-Authentication
    AirTime Fairness
    Band Steering
    Auto Channel Selection
    Max. Number of SSIDs 8 (4 per radio band)
    WDS
    Bandwidth Limit per Station
    Client Number Limit Per band, Per SSID
    Connection Time Control
    WMM
    Security
    Security Mode WPA3, WPA3/WPA2, WPA2, WPA2/WPA, OWE, WPA, WEP, None
    Authentication Personal, Enterprise
    WPS PIN, PBC
    Hidden SSIDs
    MAC Address Filter Up to 256 entries
    Wireless Client Isolation
    Mobile Device Management
    Application
    Built-in RADIUS Server
    RADIUS Proxy PEAP, EAP-TLS
    DHCP DHCP Server, DHCP, Client, DHCP Relay Agent
    Static IP
    MAC Clone
    802.1q VLAN
    Schedule Auto-Reboot, Wi-Fi Up/Down, LED On/Off
    Management
    Local Service HTTP, HTTPS, Telnet
    Configuration Stand Alone, TR-069 (VigorACS), VigorRouter APM, VigorAP Mesh Root
    Firmware Upgrade HTTP, TFTP, TR-069
    Tools Speed Test, AP Discovery, Statistics, DHCP Table, Interference Monitor
    Notification Alert E-mail
    SNMP v2, v2c, v3
    Syslog
    Managed by VigorConnect
    Managed by VigorACS
    Physical
    Environment Outdoor
    Mounting Wall Mount, Pole Mount
    Power Method 802.3af/at PoE 56V
    Max. Power Consumption with PoE Output 43.2 watts (model RPD)
    Max. Power Consumption without PoE Output 18 watts (model RPD)
    Max. PoE Output 12 watts (model RPD)
    Dimension 243 mm x 161 mm x 72 mm
    Weight 0.9 kg
    Operating Temperature -40 to 70°C
    Storage Temperature -40 to 85°C
    Operating Humidity 5 to 95% non-condensing
    Certificate

    Notes:

    • All specifications are subject to change without notice.
    • The throughput figures are maximum, based on DrayTek internal testing with optimal conditions. The actual performance may vary depending on the different network conditions and applications activated.
