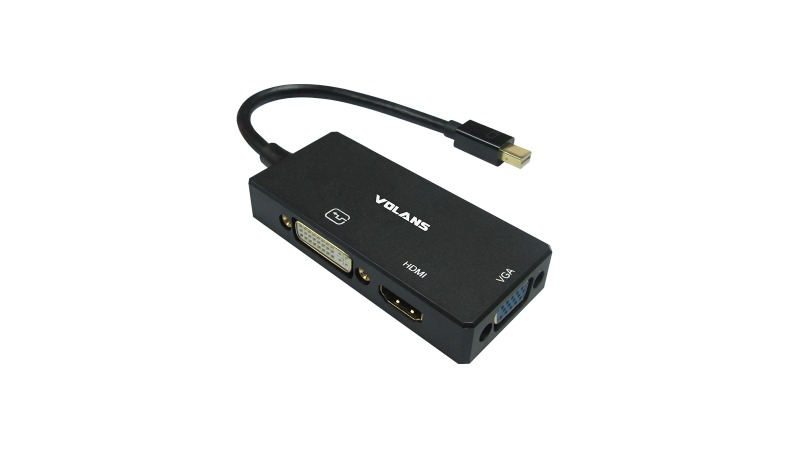

VOLANS VL-MDPHDV-4KMini DisplayPort to HDMI (4K) / DVI / VGA Converter (MDPHDV-4K)CLEARANCE STOCK
| SKU: | 419071 |
|---|---|
| MPN: | VL-MDPHDV-4K |
| Manufacturer: | https://www.volans.com.au/ |
| Brand: | Volans |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
Features
All-in-one video connectivity, with travel in mind
Instead of filling your laptop bag with different converters for different displays, this 3-in-1 adapter gives you all the video outputs you抣l need. With VGA, DVI and HDMI outputs, this adapter lets you connect from your laptop抯 Mini DisplayPort port to any boardroom or classroom display, without the inconvenience of carrying a separate adapter for each display type. With support for multiple video outputs and a lightweight, small-footprint design, this adapter is the ideal plug-and-play solution for travel or BYOD (Bring Your Own Device) applications around the office.
Astonishing picture quality with support for Ultra HD 4K
The HDMI output on this adapter supports Ultra HD 4K resolutions, providing four times the picture quality of high-definition 1080p. The HDMI output is also backward compatible with lower resolutions, such as 1080p and 720p, so the adapter is also perfect for your legacy video equipment. The VGA and DVI outputs also support a high-definition maximum resolution up to 1920 x 1200, so you can still enjoy excellent video quality. The travel adapter is compatible with mDP Intel� Thunderbolt� devices that are capable of outputting a DisplayPort signal.
Specification
| WARRANTY INFORMATION | ||
|---|---|---|
| Warranty | 1 Year | |
| HARDWARE | ||
| Adapter Style | Adapters | |
| Audio | Yes | |
| Converter Type | Travel A/V Adapters | |
| Output Signal | HDMI | |
| DVI-D (DVI Digital) | ||
| VGA | ||
| PERFORMANCE | ||
| Audio Specifications | HDMI output � 7.1 surround sound | |
| General Specifications | Only one video output is supported on the video adapter at a time. If multiple connections are made, only one of the outputs will function. | |
| Maximum Analog Resolutions | 1920 x 1200 | |
| Maximum Digital Resolutions | 3840 x 2160 | |
| Supported Resolutions | HDMI output: 3840 x 2160, 2560 x 1600, 1920 x 1200, 1920 x 1080, 1280 x 720
DVI and VGA output: 1920 x 1200, 1920 x 1080, 1280 x 720 |
|
| Video Revision | DisplayPort 1.2 | |
| Wide Screen Supported | Yes | |
| CONNECTOR(S) | ||
| Connector A | 1 � Mini-DisplayPort (20 pin) Male Input | |
| Connector B | 1 � HDMI (19 pin) Female Output | |
| 1 � VGA (15 pin, High Density D-Sub) Female Output | ||
| 1 � DVI-D (25 pin) Female Output | ||
| SPECIAL NOTES / REQUIREMENTS | ||
| Note | The HDMI port is a passive port. The DVI-D is a passive port. The VGA port is an active port. |
|
| ENVIRONMENTAL | ||
| Humidity | 40%-50%RH | |
| Operating Temperature | 0癈 to 70癈 (32癋 to 158癋) | |
| Storage Temperature | -10癈 to 80癈 (14癋 to 176癋) | |
| WHAT扴 IN THE BOX | ||
| Included in Package | 1 � VL-MDPHDV-4K
2 � User Manuel |
|
